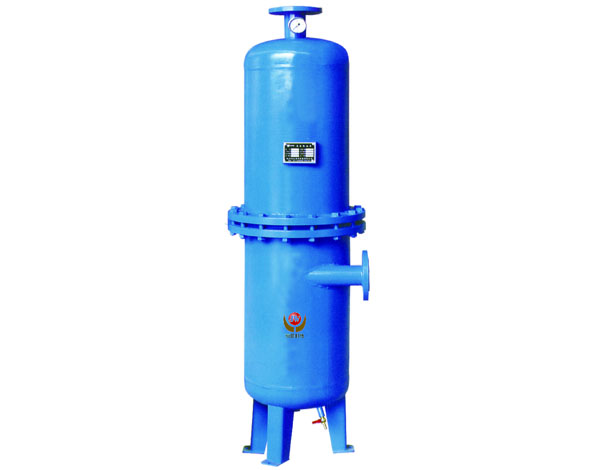

JWY high efficiency oil remover

Working principle

Cyclone separation, pre filtration and fine filtration are integrated to directly intercept the oil and water in the compressed air. Through cyclone separation, the gravity drops. The primary filter element and precision core are filtered layer by layer to completely remove the oil, water and dust in the air. After treatment, the filter precision of the compressed air can reach 0.1 μ m, and the residual oil volume is less than 0.01ppm.

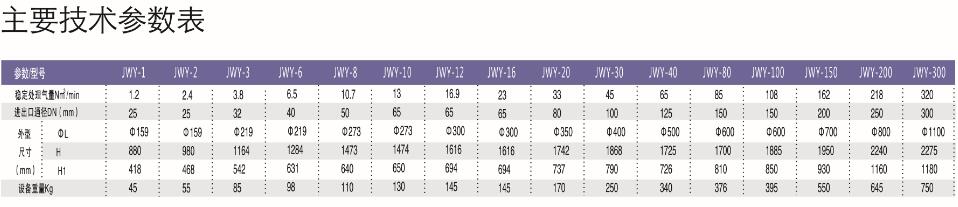

Technical characteristics

Working pressure: 0.4 ~ 1.0MPa (1.0 ~ 3.0MPa can be provided); inlet temperature: ≤ 50 ° C; oil content of outlet gas: ≤ 0.1 ~ 0.01ppm; pressure loss: ≤ 0.02MPa
