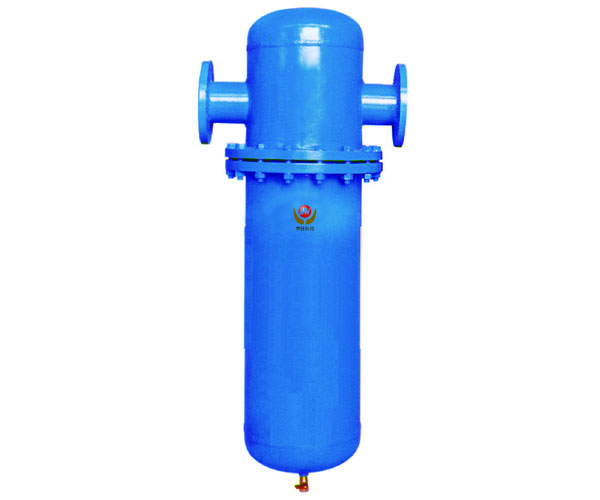

JWF dust fine filter

Working principle

Using high-quality and high-performance filter element components, using the mechanism of agglomeration, gravity sedimentation, Brownian diffusion, etc., to collect and absorb small foggy particles, to achieve gas-liquid and dust separation, so as to obtain ideal air quality. The product has small constitution and high purification rate, and is an ideal matching product of adsorption dryer and freeze dryer.

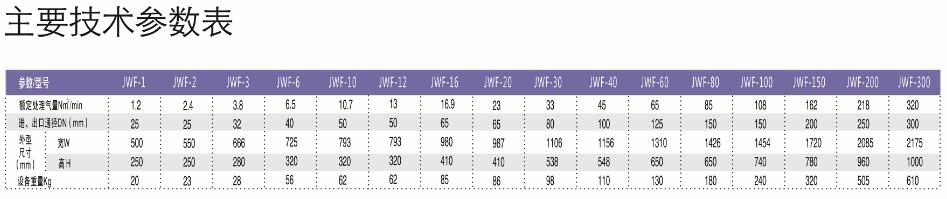

Technical index

Working pressure: 0.2 ~ 1.0MPa (1.0 ~ 3.0MPa can be provided) air inlet temperature: ≤ 80 ° C

Pressure loss: 0.02MPa, dust content of outlet gas: ≤ 0.01 μ M
