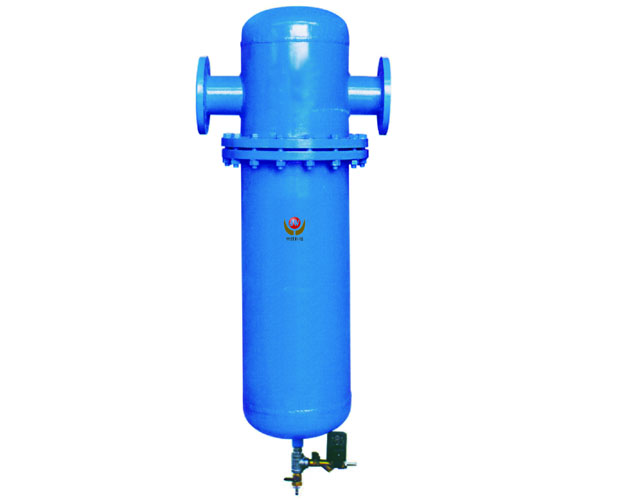

JWL precision filter

Working principle

The product is mainly used to remove oil, liquid water mist and dust in compressed air, with high efficiency, convenient use and low operation cost. According to different stages, the product is divided into three levels: C, t and a. Grade C filtering accuracy is ≤ 3 μ m, except 99.999% of free state water; grade a filtering accuracy is ≤ 0.01 μ m, except 99.9% of free state water.

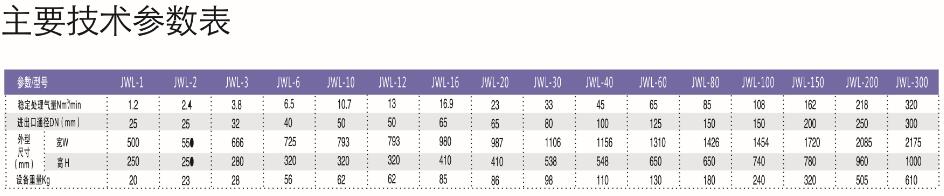

Technical index

Working pressure: 0.4 ~ 1.0MPa (1.0 ~ 3.0MPa can be provided) air inlet temperature: ≤ 50 ° C pressure loss: 0.02MPa
